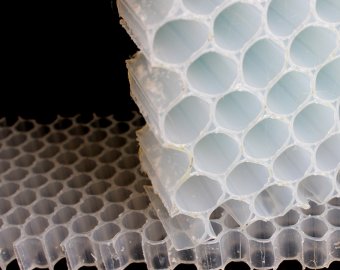

Floor acoustic mat in honeycomb structural for sound reducing
Achieving acoustics is based honeycomb,its cell structure
could aborb,reflecting,consume the energy of sound vibration,
to keep noise minimum.
Achieving acoustics is based honeycomb,its cell structure
could aborb,reflecting,consume the energy of sound vibration,
to keep noise minimum.
Achieving Acoustics - Soundproof your world
Achieving acoustics is based honeycomb,its cell structure could aborb,reflecting,consume
the energy of sound vibration, to keep noise minimum.
Features: it is eco-friendly, lightweight,water-resistant, easy install and easy maintenance.
·Achieving coustics mat
Wildly adopted by commercial buildings, apartments, noise reduce for adjacent floors
It is a 5mm thickness mat,common size 1220*2440mm or 1150*2300mm,
Made of polycarbonate or polypropylene.density is around 70-90kg/m3,
It is laid and glued onto the floorslab’s surface, easier be bond and quickly ready for
Installation of tiles or timber flooring.
Advantage: It is strong and flexible,not grow together like rubber for example and have air in side its cells, ventilatable and not crush,dissipating sound as it pass through the mat rather than deadening.
It is a 5mm thickness mat,common size 1220*2440mm or 1150*2300mm,
Made of polycarbonate or polypropylene.density is around 70-90kg/m3,

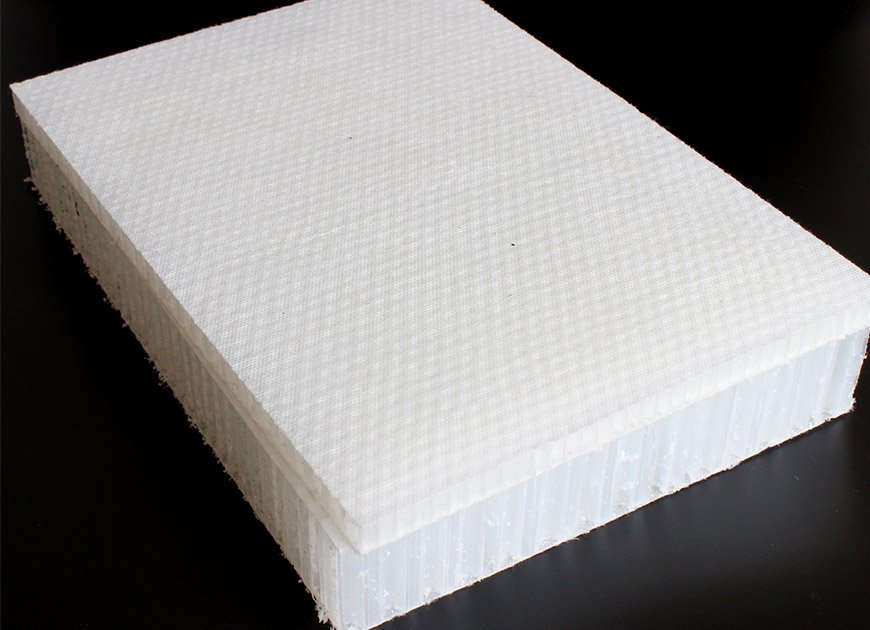

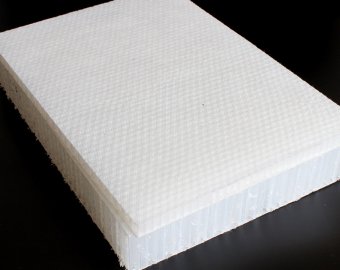

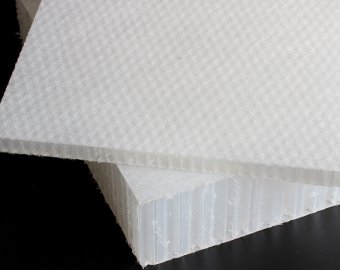

| PP honeycomb with Non-woven surface | |||
| Cell size | 8mm | 10mm | 12mm |
| Thickness | 5mm-1000mm | ||
| Max length | 1220*2440mm or Customize | ||
| Max width | |||
| Tolerances | ±0.4mm | ||
| Density | 80Kg/m³ | 75Kg/m³ | 70Kg/m³ |
| Compressive strength | GB/T1453 1.5-2 | ||
| Shear strength | 0.5Mpa | ||
| Temperature range | From - 15℃ to + 80℃ | ||
| Flammability | B2 | ||
| Sound reduction Factor 50-4.000HZ | 22db | ||
| Color | White | ||
