Qingdao Achieving® Honeycomb Co., Ltd. was founded in 2006. Specializing
in the production of plastic honeycomb core and other derivative products.
We supplying top quality products worldwide. Our efficient production mamagement
and quality control system provide you ligh quality products.

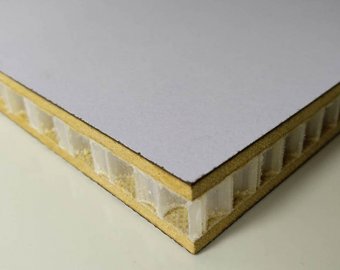

PP honeycomb core with non woven surface,
surface layer would be PVC/PC/Acrylic/MDF

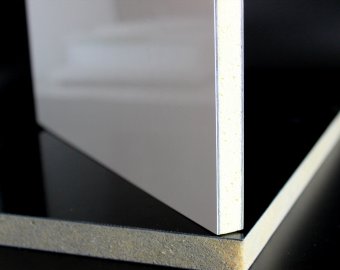

honeycomb laminated sandwich panels
8mm-30mm thickness
1200*2400mm
| PP honeycomb with Non-woven surface | |||
| Cell size | 8mm | 10mm | 12mm |
| Thickness | 5mm-1000mm | ||
| Max length | 1220*2440mm or Customize | ||
| Max width | |||
| Tolerances | ±0.4mm | ||
| Density | 80Kg/m³ | 75Kg/m³ | 70Kg/m³ |
| Compressive strength | GB/T1453 1.5-2 | ||
| Shear strength | 0.5Mpa | ||
| Temperature range | From - 15℃ to + 80℃ | ||
| Flammability | B2 | ||
| Sound reduction Factor 50-4.000HZ | 22db | ||
| Color | White | ||
