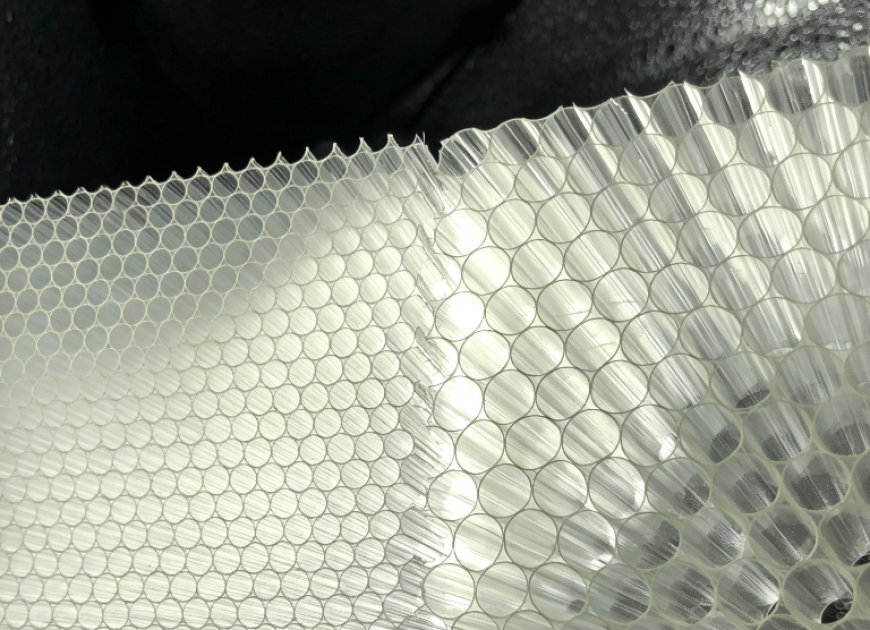

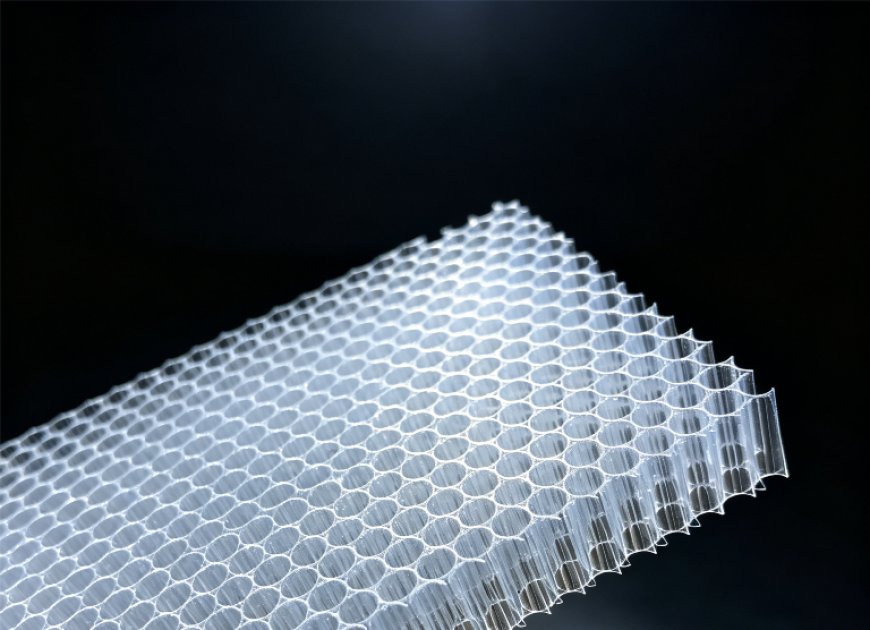

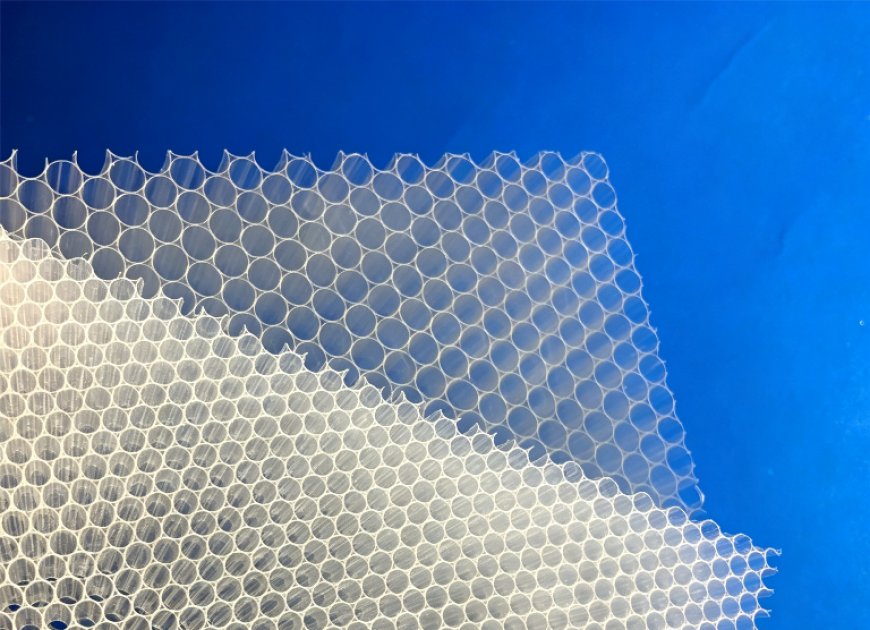

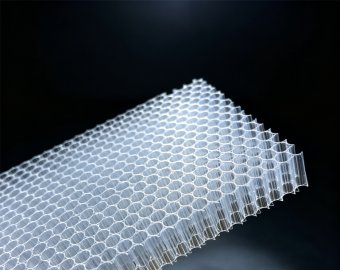

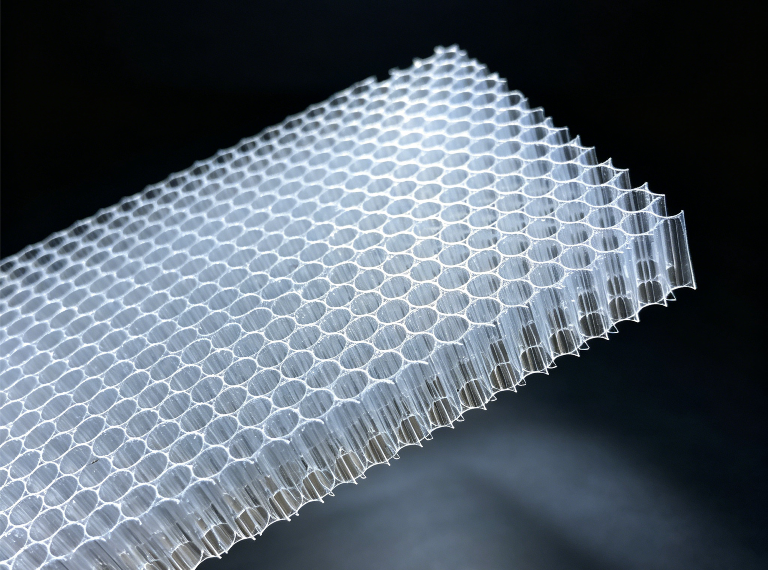

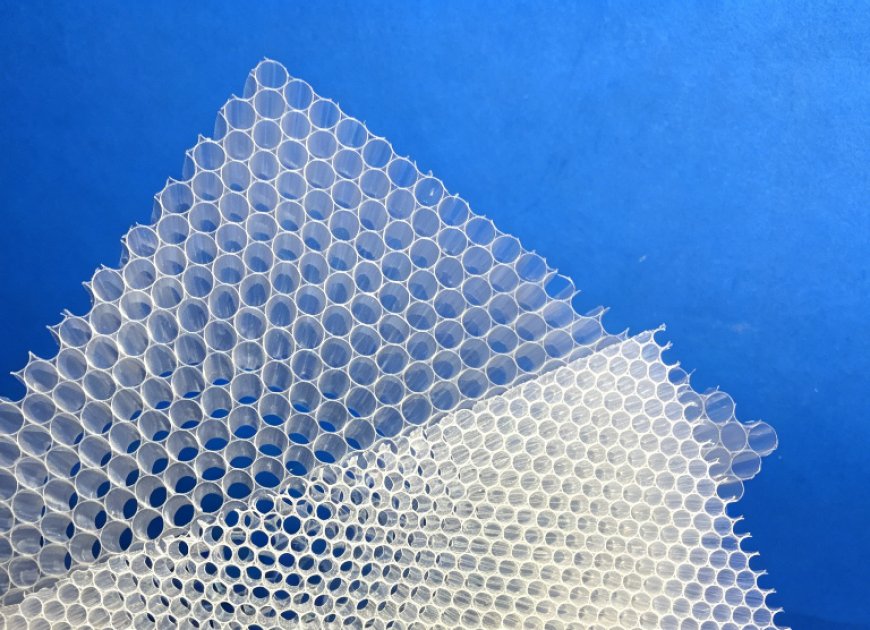

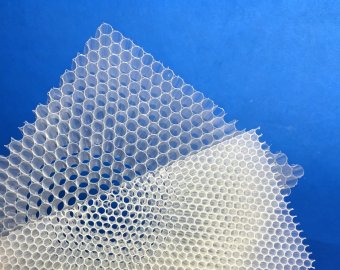

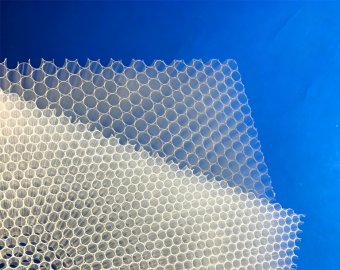

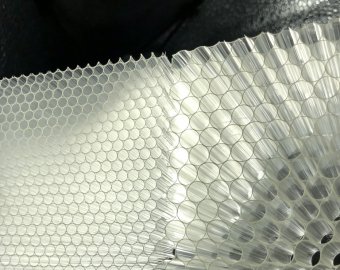

This PC honeycomb airflow straightener provides stable laminar flow with low pressure loss and no turbulence. It avoids thermal bridging and frost buildup to maintain consistent cold chain air curtains. Food-grade, zero-VOC, fully recyclable and customisable, it boosts HVAC efficiency and reduces carbon emissions.
Introduction In precision HVAC systems and commercial cold chain applications, airflow turbulence and frost formation are the primary drivers of energy inefficiency. Utilizing advanced Polycarbonate (PC) honeycomb technology, our industrial-grade Air Flow Straighteners are engineered specifically to eliminate these pain points. By converting chaotic turbulence into stable, parallel laminar flow, our core structures achieve an open area of up to 97%, maximizing air throw distance while maintaining an ultra-low pressure drop. For high-humidity environments, our Anti-Frost Solutions leverage the inherently low thermal conductivity of 100% virgin PC to eliminate thermal bridging and significantly delay ice propagation. Whether stabilizing air curtains in commercial display cases or optimizing industrial air distribution, we deliver precision engineering that meets the most stringent thermal management and food safety compliance standards.
1. Laminar Flow Engineering

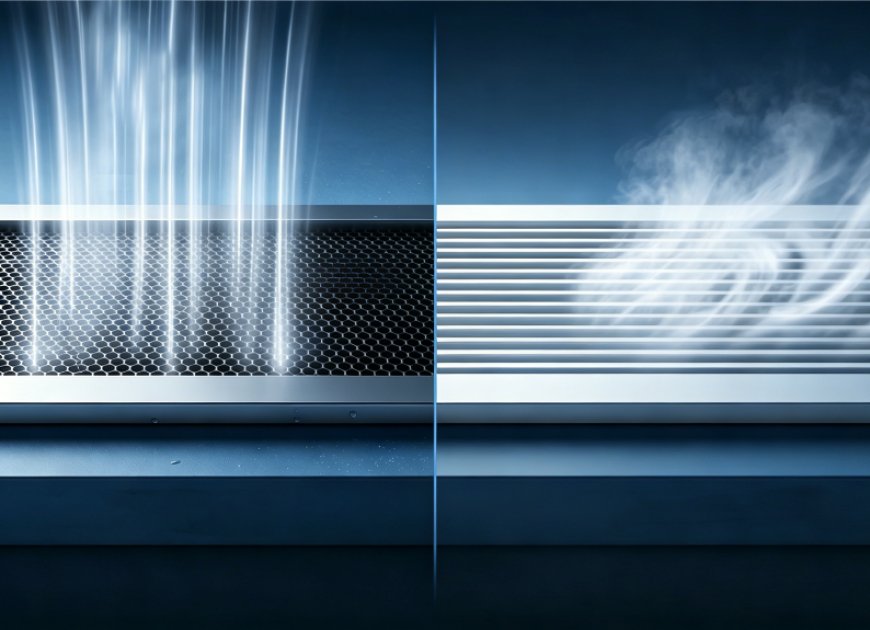

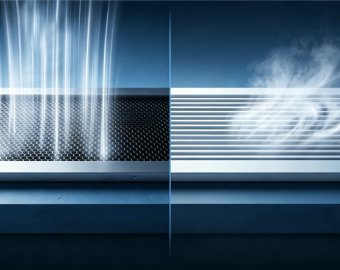

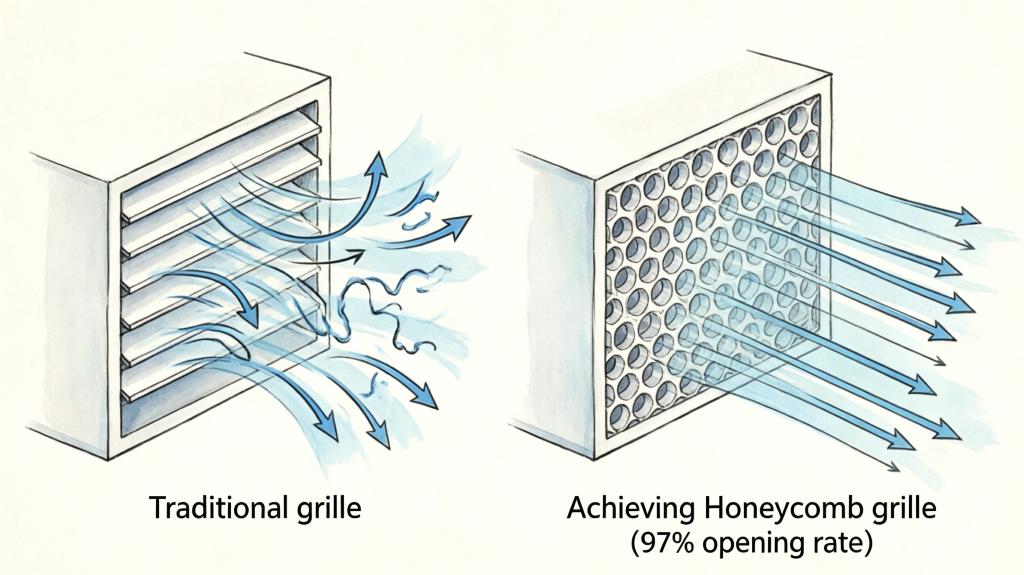

Conventional grilles often induce turbulent eddies, resulting in localized temperature gradients. Featuring a micro-aperture structure with up to 97% open area, our honeycombs utilize an optimized aspect ratio (cell depth to diameter) to mechanically redirect turbulent airflow into uniform, parallel laminar flow. This significantly extends air throw, ensures a homogeneous thermal zone, and reduces fan power consumption.
2. Laminar Flow Optimization for Air Curtains

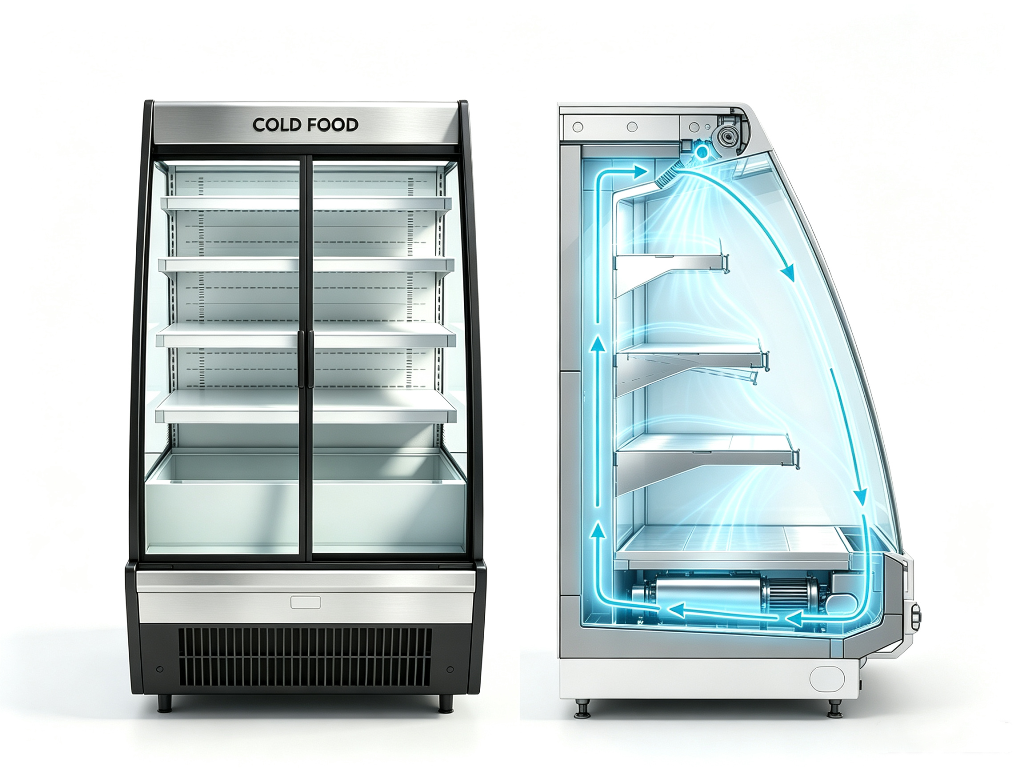

The energy efficiency of commercial display cases hinges on air curtain stability. Our honeycomb matrices instantly transform turbulent intake into highly parallel laminar flow streams. By optimizing the fluid dynamics and lowering the Reynolds number, the air curtain remains rigid and unbroken even during door openings or in open-front configurations, effectively blocking ambient heat ingress.
3. Thermal Bridging Prevention & Anti-Frost Performance

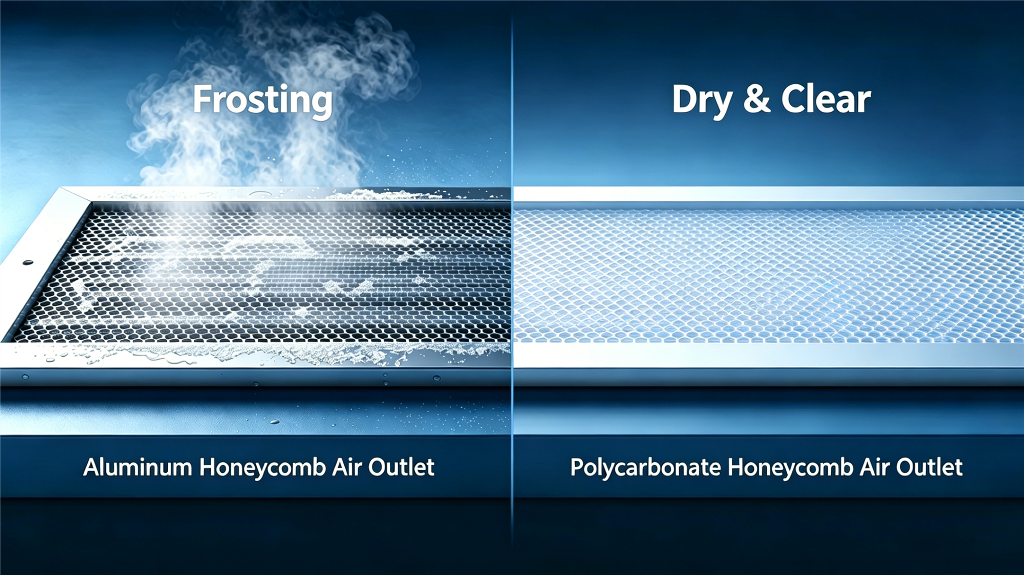

Unlike traditional aluminum or metal grilles, high-performance Polycarbonate (PC) exhibits exceptionally low thermal conductivity, inherently preventing the formation of "thermal bridges." In low-temperature, high-humidity cryogenic environments, this thermal resistance—combined with a smooth, hydrophobic surface—significantly retards condensate accumulation and ice propagation. For end-users, this translates to fewer defrost cycles, zero refrigeration efficiency decay caused by frost clogging, and consistently clear product visibility.
4. Stringent Hygiene & Regulatory Compliance
The inner cell walls feature a seamless, monolithic extrusion profile that resists grease, dust adhesion, and particulate accumulation, effectively eliminating microbial harborages. Capable of withstanding high-pressure washdowns and aggressive chemical sanitation, our products fully satisfy the stringent hygiene requirements of HACCP and food safety management systems.
5. Customized Flow Direction
To accommodate specialized angular or lateral air distribution requirements, we offer precision angular cutting (e.g., 45° or 60° cell inclinations) and size, thickness customize. This allows for direct, targeted airflow positioning without the added weight, cost, or pressure drop of secondary external deflector vanes.
6. 100% Closed-Loop Recyclability
As a premium thermoplastic engineering resin, polycarbonate offers exceptional closed-loop recycling potential. At the end of its operational lifecycle, our honeycomb structures can be fully shredded and re-granulated into raw feedstocks for other industrial applications. This drastically mitigates industrial waste directed to landfills, aligning your supply chain with global Circular Economy initiatives.
7. Carbon Footprint Advantages of Virgin Material
Compared to recycled resins bound with impurities, components extruded from 100% virgin PC grade stock deliver a far superior strength-to-weight ratio. This engineering advantage allows for down-gauging—achieving the same structural integrity with less material mass. Furthermore, its extended operational lifespan eliminates the frequent replacement cycles, reducing downstream resource consumption and cumulative carbon emissions.
8. Zero-VOC & Non-Toxic Commitment
Our proprietary manufacturing process is completely free of harmful plasticizers or volatile organic solvents. Fully compliant with RoHS directives, the material guarantees zero toxic outgassing (Zero-VOC), even under rapid thermal cycling or within sealed enclosures such as commercial refrigerators and cleanrooms, safeguarding both food products and ambient air quality.
9. Accelerating Carbon Neutrality Goals
By delivering a lightweight structural profile and substantially boosting the Energy Efficiency Ratio (EER) of terminal equipment—such as refrigeration units and AHUs (Air Handling Units)—our technology directly lowers the operational carbon footprint of end-users, serving as a critical asset for corporate Scope 3 emission reductions and carbon neutrality targets.
Technical solution engineered by R&D Department at Qingdao AchievingHoneycomb, 2026.
