In the laser processing of FPC flexible circuit boards, PCB rigid circuit boards, and precision electronic components, backing plates, jigs, and workbench substrates are core components that guarantee processing accuracy and product yield. Traditional plates made of metal, wood, or ordinary plastic suffer from common drawbacks including electric breakdown risk, particle contamination, moisture-induced deformation, insufficient heat resistance, and declining precision. These limitations make them unable to meet the stringent requirements of modern high-precision, high-cleanliness, and high-stability electronic laser manufacturing. Featuring native insulation, excellent laser burn resistance, stable dimensional accuracy, high toughness, and residue-free performance, PC honeycomb panels serve as an upgraded and specialized padding solution that effectively solves critical process pain points in precision electronic laser production.
Conventional padding materials widely used in electronic laser processing show obvious deficiencies under high-precision and high-thermal-load working conditions, directly affecting production stability and product yield:
Aluminum alloy plates, once the mainstream option, feature high hardness and rigidity but inherent electrical conductivity. During laser cutting, static electricity adsorption, and vacuum adsorption processes, static accumulation and instantaneous conduction frequently occur, easily damaging delicate FPC circuits and causing component short-circuit failures. Fine metal debris generated during processing adheres to circuit surfaces and is difficult to clean, leading to subsequent poor contact and short-circuit risks. In addition, metal plates are heavy, produce strong laser reflection, and easily burn workpieces, hindering rapid commissioning and precision production.
Wood and ordinary PP plastic plates are non-conductive but have loose structures, poor heat resistance, and low impact resistance. Instant high temperature during laser processing easily causes melting, scorching, and residual odor. These materials readily absorb moisture and deform under fluctuating temperature and humidity in electronic workshops, resulting in uneven flatness, cutting offset, and positioning errors that fail to meet ±0.01 mm high-precision standards. Furthermore, such plates wear quickly, produce dust contamination, and require frequent replacement, leading to high comprehensive production costs.

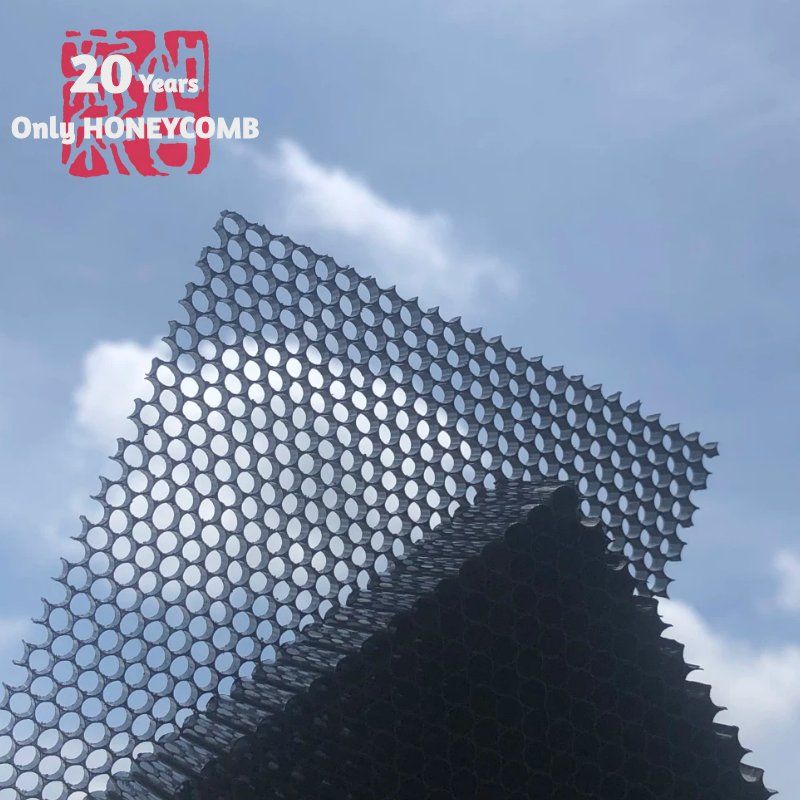

Manufactured integrally from high-performance polycarbonate (PC), PC honeycomb panels deliver superior heat resistance, toughness, laser burn resistance, and exceptional dimensional stability. They overcome the defects of traditional plates and ordinary plastic honeycomb materials, making them the optimal specialized plate for FPC laser cutting, PCB positioning jigs, laser engraving, and vacuum adsorption substrates.
As a pure engineering plastic material, PC honeycomb panels provide excellent insulation and anti-static performance with zero conductivity and static accumulation. No additional insulation treatment or auxiliary insulation layers are required, simplifying production processes and completely blocking conductive paths.
During FPC laser cutting and precision electronic engraving, the panel avoids electrostatic discharge and electric arc phenomena, protecting delicate circuits and electronic components from breakdown and burnout. No conductive metal debris or scorched plastic residue is produced during laser cutting and drilling, eliminating hidden short-circuit hazards and significantly improving finished product yield while fully complying with high-standard dust-free workshop requirements.
Unlike PP honeycomb and ordinary plastic plates that easily melt and scorch under laser heat, PC honeycomb panels possess outstanding thermal stability and laser burn resistance. Under instantaneous high-temperature laser impact, the panel maintains stable performance without melting, scorching, deforming, or generating peculiar smells or residues. It endures long-term, high-frequency laser irradiation and cutting, perfectly adapting to continuous and mass laser production.
With a compact and uniform honeycomb structure, PC honeycomb panels deliver excellent mechanical stability and deformation resistance. The material is completely water and moisture resistant, avoiding warping, swelling, and deformation caused by humidity changes and condensation. Its superior thermal stability maintains consistent flatness over long-term operation, supporting micron-level precision drilling, cutting, and engraving for PCB and FPC products.
PC material exhibits far higher toughness, impact resistance, and structural stability than ordinary plastics. The integrated honeycomb structure balances lightweight performance and structural rigidity, achieving mechanical properties close to metal plates with significantly lower weight. Lighter than aluminum plates, it simplifies workbench installation, disassembly, and commissioning, greatly improving operational efficiency.
The dense and wear-resistant surface withstands repeated laser processing, vacuum adsorption, and friction without abrasion, delamination, or depression. Its service life is 3–5 times longer than traditional wood and ordinary plastic plates. With excellent acid and alkali corrosion resistance, it adapts to routine cleaning and disinfection in electronic workshops, maintaining stable performance in long-term high-temperature and high-humidity environments and reducing equipment maintenance and replacement costs.
PC honeycomb panels feature excellent machinability, supporting precise cutting, drilling, grooving, and molding. Custom-shaped structures, positioning grooves, and uniform adsorption holes can be fabricated to meet personalized requirements for PCB jigs, vacuum adsorption substrates, and laser workbenches. The processing procedure produces no dust, metal burrs, or plastic debris, ensuring a clean dust-free workshop environment.
The regular honeycomb cavity structure ensures stable and uniform air permeability, reducing workpiece displacement and smoke residue during laser processing. Its outstanding vibration damping performance absorbs equipment vibration, minimizing machining errors and effectively improving the flatness and accuracy of cutting and engraving results, fully meeting the strict process standards of precision electronic laser manufacturing.
With comprehensive performance advantages, PC honeycomb panels have become standard specialized materials for electronic laser manufacturing, widely applied in high-precision processing scenarios:
FPC Laser Cutting Backing Plate: Provides insulation, anti-static protection, and laser burn resistance; avoids circuit breakdown, scratching, and thermal damage, ensuring high yield of ultra-thin flexible circuits.
PCB Positioning Jig: Maintains stable dimensions without thermal deformation or warping, ensuring precise positioning for standardized mass laser production and reducing rejection rates caused by positioning deviation.
Precision Laser Engraving Workbench: Delivers stable flatness, vibration reduction, and laser impact resistance, suitable for high-frequency fine engraving of precision electronic components and micro circuits.
Electronic Manufacturing Vacuum Adsorption Substrate: Lightweight, high-strength, and highly customizable with uniform air permeability, ensuring stable workpiece fixation and zero displacement during laser processing.
As electronic laser manufacturing advances toward higher precision, yield stability, and cost efficiency, traditional metal, wood, and ordinary plastic plates can no longer meet industrial upgrading demands. PC honeycomb panels integrate native insulation, laser burn resistance, dimensional stability, high cleanliness, and lightweight advantages, completely solving common industry pain points such as electrostatic breakdown, thermal damage, particle pollution, structural deformation, and short service life.
Tailored for the high-temperature, high-precision, and high-cleanliness characteristics of laser processes, PC honeycomb panels effectively improve machining accuracy and product yield while reducing equipment maintenance, material loss, and labor costs. As a new-generation specialized plate replacing traditional padding materials, it provides strong support for lightweight upgrading and high-quality development of intelligent precision electronic manufacturing.
